Introduction

Data is at the heart of every modern application, from social media platforms and online stores to banking systems and healthcare software. To store, organise, and retrieve this data efficiently, organisations rely on databases.

When discussing databases, two major categories often come up: SQL databases and NoSQL databases. While both are designed to store and manage data, they do so in different ways and are suited for different types of applications.

This guide explains SQL and NoSQL databases in simple terms, explores how they work behind the scenes, and helps you understand when to choose one over the other.

What Is a Database?

A database is an organised collection of data that allows applications to store, retrieve, update, and manage information efficiently.

For example:

The database acts as the system that keeps all this information organised and accessible.

Understanding SQL Databases

SQL (Structured Query Language) databases are also known as relational databases because they organise data into tables with rows and columns.

Popular SQL databases include:

How Data Is Stored

In a relational database:

Example: A users table in SQL database

Customer ID Name Email
101 John john@example.com
102 Sarah sarah@example.com

The structure of the table is defined beforehand using a schema.

Key Characteristics of SQL Databases

1. Fixed Schema

One of the key characteristics of SQL databases is their predefined schema. The database enforces rules about the structure of the data, including which columns are present and the data type allowed in each column. This ensures consistency across records. Later, we'll explore how NoSQL databases take a different approach to managing data structure.

This is why an update can look like this:

CREATE TABLE Customer (
    CustomerID INT PRIMARY KEY,
    Name VARCHAR(100) NOT NULL,
    Email VARCHAR(255) NOT NULL UNIQUE
);

Benefits

Drawbacks

2. ACID Transactions

1. Atomicity

A transaction either completes entirely or does not happen at all. There is no partial completion.For example, suppose you transfer ₹100 from Person A's account to Person B's account. The transaction involves two operations:

If either operation fails, the entire transaction is rolled back. The database ensures that you never end up in a situation where money is deducted from A but not added to B.

2. Consistency

Consistency ensures that the database always remains in a valid state before and after a transaction. For example, if a business rule states that an account balance cannot be negative, the database will prevent a transaction that would violate that rule. If Person A has only ₹50, a transaction attempting to transfer ₹100 will be rejected, keeping the data consistent.

3. Isolation

Isolation ensures that multiple transactions running at the same time do not interfere with each other.

For example, while one transaction is updating account balances or performing complex joins, another user may still be able to read the previously committed version of the data. This prevents users from seeing incomplete or partially updated information.

Modern databases use techniques such as locking and Multi-Version Concurrency Control (MVCC) to achieve isolation. We will explore these mechanisms in more detail later in the blog.

4. Durability

Durability guarantees that once a transaction is committed, its changes are permanently stored and will survive system crashes, power failures, or server restarts.

For example, after a successful money transfer is committed, the updated balances should remain intact even if the database server crashes immediately afterward.

Databases achieve this using mechanisms such as Write-Ahead Logging (WAL), where changes are first recorded in a log before being written to the actual data files. We will discuss WAL and durability in greater depth later in this blog.

This makes SQL databases ideal for:

3. Relationships Between Data

Relational databases are excellent at managing connected data. They can easily link related information, such as customers, orders, and products, using relationships between tables, making them ideal for applications with complex data connections.

Internal Concepts in SQL Databases

Many beginners focus only on tables and queries, but several important mechanisms work behind the scenes.

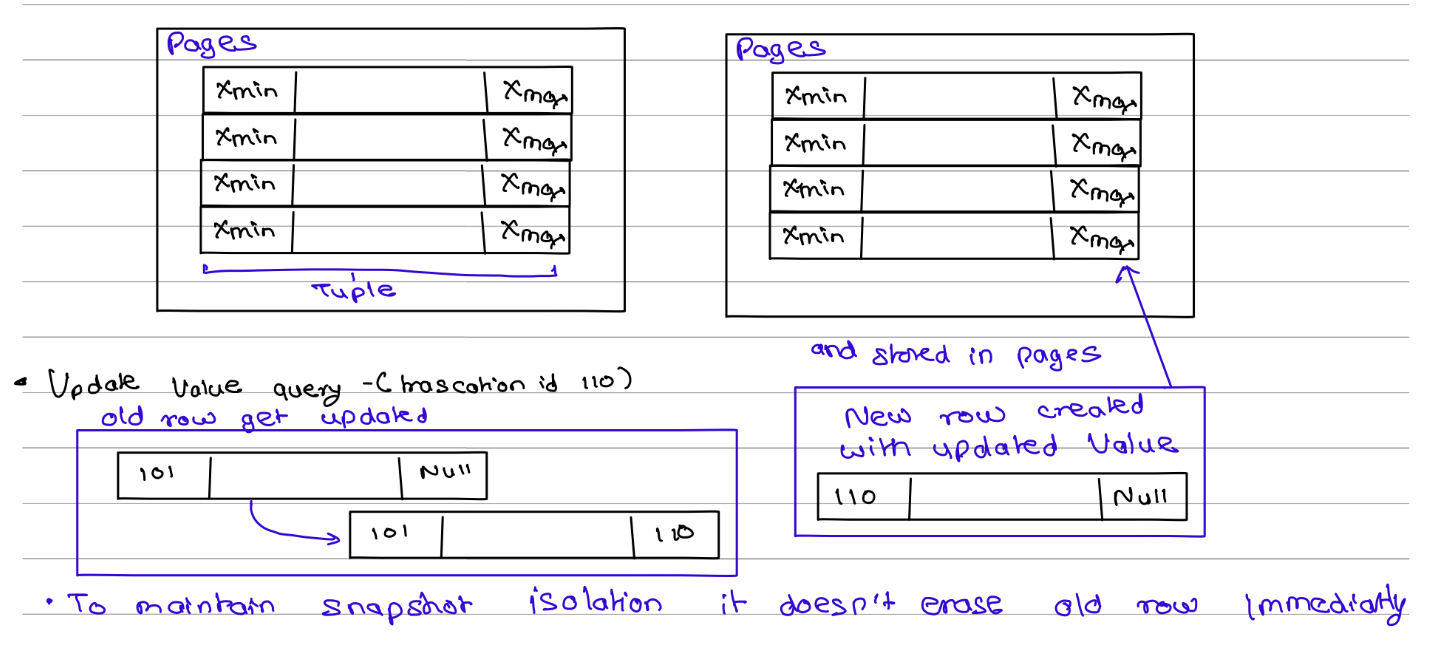

Row versioning update

Pages and Storage

Relational databases store data in fixed-size blocks called pages, and each page can hold multiple rows (also known as tuples). Instead of storing every row separately, grouping rows into pages makes disk access and memory management more efficient.

As shown in Figure, a table is physically stored as a collection of pages, with each page containing multiple tuples. This page-based organisation helps databases optimise storage usage and improve read performance.

Multi-Version Concurrency Control (MVCC)

Modern relational databases such as PostgreSQL use Multi-Version Concurrency Control (MVCC) to handle concurrent reads and writes efficiently.

PostgreSQL stores additional metadata with every row in the form of hidden system columns. Two important system columns are xmin, which records the transaction that created the row version, and xmax, which records the transaction that invalidated it. These columns are used internally by MVCC to determine which version of a row should be visible to a transaction.

For example, in Figure, a row created by transaction 101 initially has xmax = NULL, indicating that it is the active version. When transaction 110 updates the row:

The old version is not removed immediately because other transactions may still need to read it. This behaviour allows the database to provide snapshot isolation, where each transaction sees a consistent view of the data.

Dead Tuples and Database Bloat

As shown in Figure, when a row is updated, PostgreSQL does not overwrite the existing row. Instead, it creates a new row version and marks the old version as no longer active by setting its xmax value.

Initially, the old row cannot be removed because some running transactions may still need to read it. However, once there are no active transactions that can see that old row version, it becomes a dead tuple (also called an expired row version).

Over time, frequent updates and deletes can leave behind many dead tuples, consuming disk space and reducing performance. This accumulation of unused row versions is known as database bloat.

Automatic Cleanup (VACUUM)

To prevent database bloat, PostgreSQL runs a background cleanup process called VACUUM.

VACUUM periodically scans pages and checks whether old row versions are still needed by any active transaction. If there is no transaction whose snapshot can see a row version between its xmin and xmax, that row version is considered dead and can be safely removed.

For example:

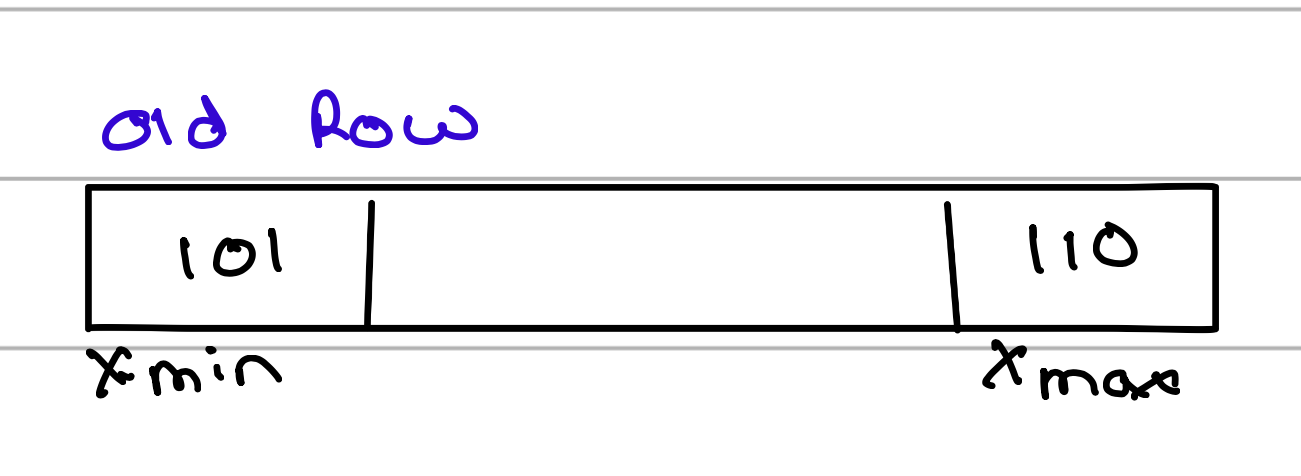

Row structure with xmin and xmax

If all transactions that started before transaction 110 have completed, this row version is no longer visible to anyone, and VACUUM can reclaim its space

Benefits of VACUUM include:

Free Space Management

After VACUUM removes dead tuples, PostgreSQL does not immediately return that space to the operating system. Instead, it marks the freed locations as available for future inserts and updates.

The database tracks these available locations using a structure called the Free Space Map (FSM).

A simplified view looks like this:

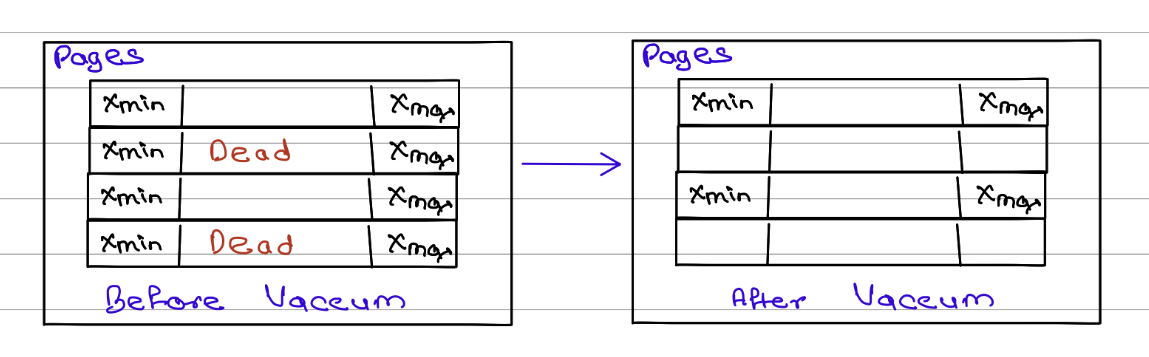

Before and after vacuum cleanup

Hotel Front Desk Analogy

A useful way to think about the Free Space Map is as a hotel's front desk.

When a new guest arrives, the hotel first checks its vacancy list and assigns an empty room. Only when every room is occupied does the hotel build a new wing.

Similarly, when a new row is inserted, PostgreSQL first checks the Free Space Map for available slots. It only allocates additional storage when no reusable space is available.

Indexing in SQL Databases

Now you know how data is stored inside pages and tuples. However, there is one problem: whenever a search query is executed, the database cannot scan every page and every tuple to find the required row. That approach would become extremely slow as the amount of data grows.

To solve this problem, databases use a specialized data structure called an index. Most relational databases implement indexes using a B+ Tree, which allows the database to quickly locate the required data without scanning the entire table.

The index does not usually store the complete row. Instead, it stores:

As shown in Figure, the TID contains information such as the page number and slot number where the tuple is stored. When a query searches for a value, the database first traverses the B+ Tree to find the corresponding TID. It then follows that pointer directly to the page and tuple containing the actual data.

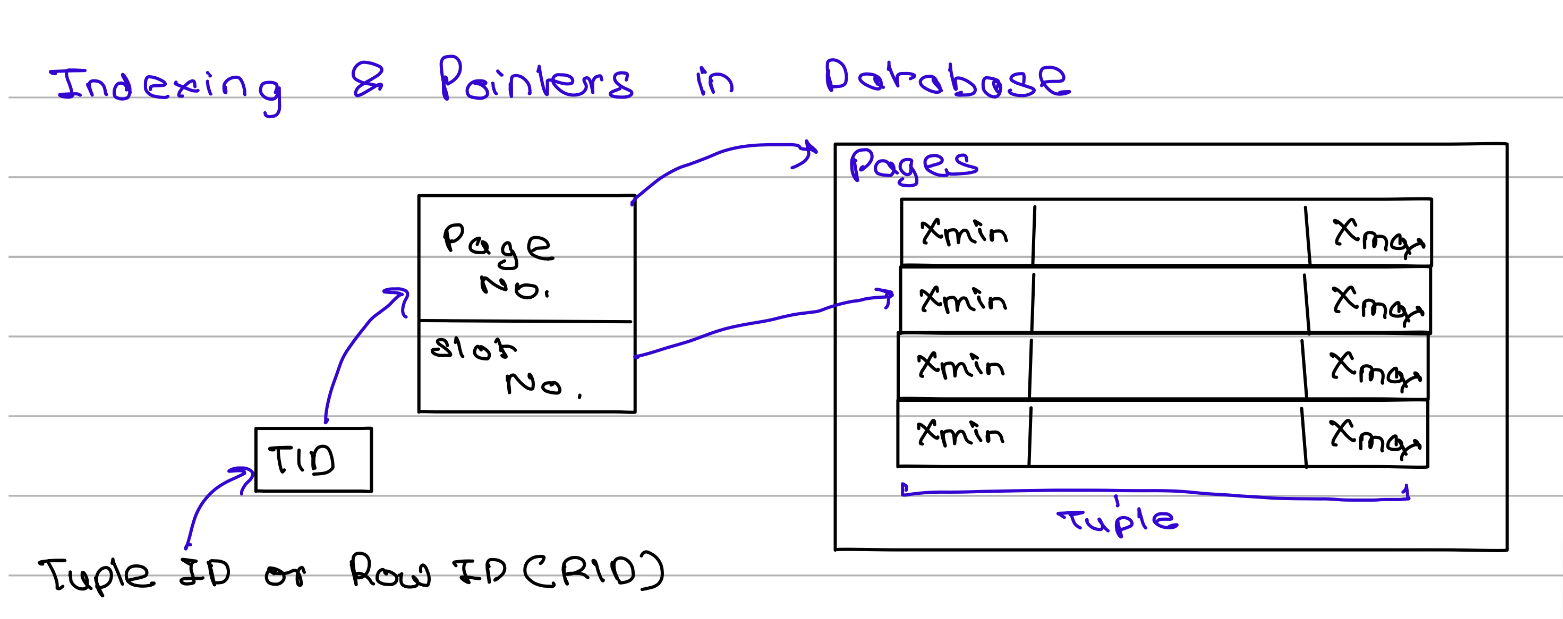

Index lookup using TID

This approach makes searches much faster because the database only needs to traverse the index and jump directly to the required row instead of scanning every page in the table.

Benefits of B+ Trees:

This is why B+ Tree indexes are the default indexing structure in most relational databases.

Document Databases: A Common NoSQL Model

Unlike relational databases, which store data in rows and columns, MongoDB stores data as documents in a format called BSON (Binary JSON). A document is a self-contained data structure that can store related information together, including nested objects and arrays.

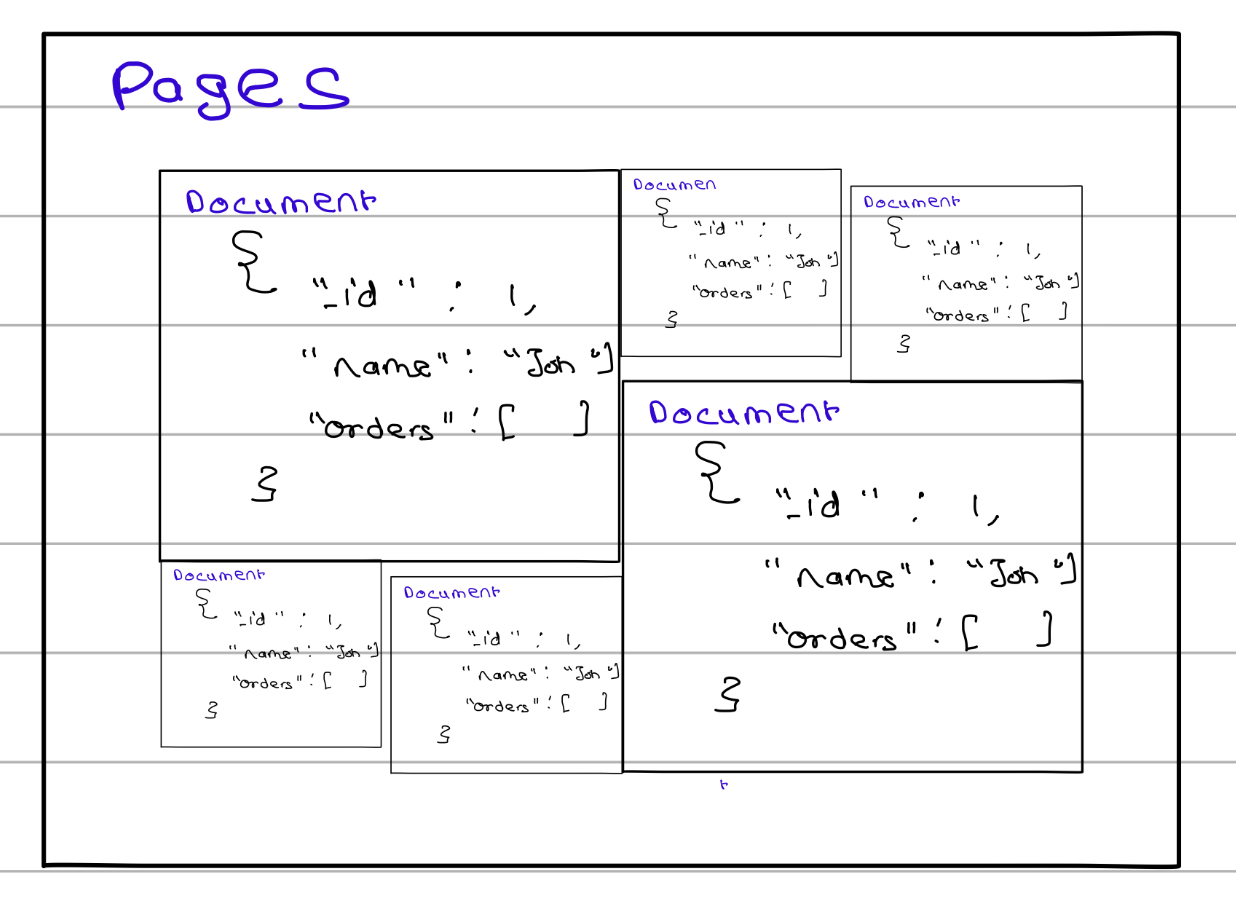

Document storage in pages

As shown in Figure, documents are still stored inside pages on disk, but unlike SQL rows, each document can have a different size and structure. For example, a user document can contain fields such as name, address, and an embedded list of orders, all within a single document.

One of the biggest advantages of MongoDB is its flexible schema. Documents within the same collection do not need to have identical fields. For example, one document may contain only a name, while another may contain a name, phone number, address, and orders. This flexibility makes it easier to evolve the data model as application requirements change.

Because related data can be embedded directly inside a document, MongoDB often reduces the need for complex joins that are common in relational databases. Operations are also atomic at the document level, meaning changes to a single document either succeed completely or fail completely. These characteristics make document databases well-suited for applications with rapidly changing requirements, user profiles, product catalogs, content management systems, and other semi-structured data workloads.

Example document:

{
  "name": "John Doe",
  "phone": "123-456-7890",
  "address": {
    "street": "123 Main St",
    "city": "Anytown",
    "state": "CA"
  },
  "orders": [
    {
      "order_id": 1,
      "product": "Laptop",
      "quantity": 1
    }
  ]
}

As illustrated in Figure 3, documents of varying sizes can coexist within the same collection and are packed into pages based on the space they require, providing greater flexibility than the fixed row structure used in relational databases.

Similarities Between SQL and NoSQL Databases

Although SQL and NoSQL databases differ in how they model data, modern database systems share many of the same underlying storage and performance concepts.

Pages on Disk

Both SQL and NoSQL databases store data on disk using fixed-size pages. A page acts as the basic unit of storage and can contain multiple rows, documents, or records. Organizing data into pages makes disk access more efficient and simplifies memory management.

Buffer Pool

Accessing data directly from disk is relatively slow. To reduce disk I/O, databases use a buffer pool, which is an area of memory (RAM) used to cache frequently accessed pages.

When a query requests data, the database first checks whether the required page is already present in the buffer pool. If it is, the data can be returned immediately without reading from disk. Otherwise, the page is loaded from disk into memory.

You can think of the buffer pool as a cache for database pages.

Benefits:

Write-Ahead Logging (WAL)

Modern databases must ensure that committed data is not lost even if the system crashes. To achieve this, many databases use Write-Ahead Logging (WAL).

The core idea is simple:

For example, if a bank transfer updates an account balance, the update is first recorded in the WAL. Even if the server crashes before the data page is written to disk, the database can replay the log during recovery and restore the committed changes.

Benefits:

Indexing

Both SQL and NoSQL databases use indexes to speed up data retrieval. Instead of scanning every row or document, an index allows the database to quickly locate the required records.

Many databases use B+ Trees as their default indexing structure, although some NoSQL databases may also use hash indexes, LSM trees, or other specialized structures depending on their workload.

Benefits:

SQL vs NoSQL: Side-by-Side Comparison

Feature SQL NoSQL
Data Model Tables and rows Documents, key-value, graph, column-family
Schema Fixed Flexible
Relationships Strong support Often embedded within documents
Transactions Full ACID support Usually document-focused
Scalability Traditionally vertical Often designed for horizontal scaling
Data Consistency Strong consistency May offer flexible consistency models
Best For Structured data Rapidly changing or semi-structured data

When Should You Choose SQL?

SQL databases are a good choice when your application requires strong data consistency, reliable transactions, and well-defined relationships between data. They work best when the structure of the data is relatively stable and complex queries, reporting, or analytics are important requirements.

Typical use cases include:

When Should You Choose NoSQL?

NoSQL databases are a better fit when your application needs flexibility, scalability, and the ability to handle rapidly changing data structures. They are particularly useful for large-scale distributed systems, high-traffic applications, and workloads that require fast read and write operations.

Typical use cases include:

Common Misconceptions

Conclusion

By now, you should have a better understanding of both SQL and NoSQL databases, including how they store data, handle updates, manage concurrency, use indexes, and ensure reliability. More importantly, you should have a clearer idea of the types of problems each database is designed to solve.

Choosing between SQL and NoSQL is not about deciding which one is better; it is about selecting the right tool for your specific requirements. If your application requires strong consistency, reliable transactions, and well-defined relationships, SQL is often the better choice. If flexibility, scalability, and rapidly evolving data models are more important, NoSQL may be a better fit.

However, this is only part of the story. In real-world systems, database selection involves many additional considerations, such as scalability requirements, data access patterns, operational complexity, team expertise, and infrastructure constraints. In fact, many modern applications use both SQL and NoSQL databases together, leveraging the strengths of each where they make the most sense.

Understanding these fundamentals provides a solid foundation, and as you dive deeper into database internals and distributed systems, you'll discover that database design is often about balancing trade-offs rather than finding a one-size-fits-all solution.
